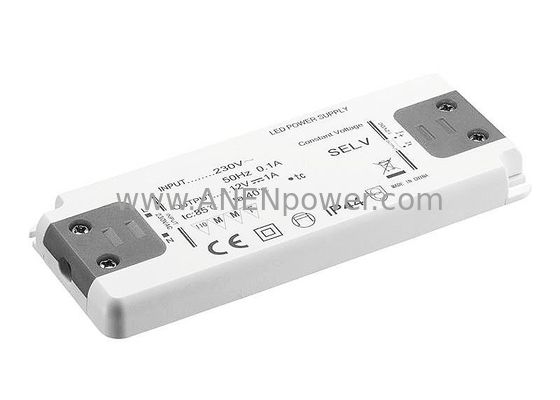

12W UKCA UL CE Certified Ultra Thin 12V/24V Dual Voltage LED Power Supply Driver for LED Lighting
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Power: | 12W Max. | Input: | 90-265V AC |
|---|---|---|---|
| Output Voltage: | 12V/ 24V/ 36V /48V | Output Current: | 1A/ 500mA/ 330mA/ 250mA |
| Dimension(LxWxH): | 128x46x12.5mm | Voltage Tolerance: | ±5% |
| Riple(P-P): | ＜1% | Efficiency: | ≥85% |
12W UKCA UL CE Certified Ultra Thin 12V/24V Dual Voltage LED Power Supply Driver for LED Lighting
The 12W UKCA UL CE certified ultra-thin LED power supply delivers exceptional performance in a remarkably compact design, perfect for space-constrained lighting installations. This versatile switching driver provides dual voltage output (12V and 24V) with flicker-free operation for LED strips, panels, and low-voltage lighting systems. Its ultra-slim profile enables seamless integration into tight spaces like cabinet undersides, signage enclosures, and architectural features, while maintaining superior thermal efficiency and quiet operation for residential and commercial applications.
Engineered with triple safety certifications (UKCA, UL, CE), this power supply features comprehensive protection against over-voltage, over-current, short circuits, and thermal overload conditions. The high-efficiency switching design minimizes energy consumption and heat generation, while universal 100-240V AC input ensures global compatibility. Premium components and robust construction guarantee reliable performance under continuous operation, with convenient screw terminal connections enabling quick installation for both professional electricians and DIY enthusiasts.
Ideal for diverse lighting projects including under-cabinet kitchen lighting, retail displays, accent lighting, and signage applications, this dual-voltage driver eliminates the need for multiple power supplies by supporting various LED configurations from a single compact unit. Its space-saving design allows for discreet mounting without compromising safety or performance, while triple certifications provide peace of mind for international installations. Experience the perfect balance of certified safety, compact innovation, and versatile performance with this professional-grade 12W LED power solution designed for quality-conscious lighting professionals.
- Universal Input: 90-265V AC 50/60Hz
- RoHS Compliance
- EMI Standard EN55015
- Safety Standard: EN61347-1, EN61347-2-13, UL8750
- Inrush current<65A AC230V/50Hz - High efficiency & low power consumption
- Short Circuit, Over Current and Over Voltage Protection
- Over temperature protection
- 100% full load burn-in test
- Auto restart after remove of fault conditions
- IP20 protection rating
| MODEL DETAIL SPEC. | APL12S-1201000 | APL12S-2400500 | APL12S-3600330 | APL12S-4800250 | |
| INPUT | Input Voltage: | 100-240VAC/ 200-240VAC | |||
| Input Frequency: | 50-60Hz | ||||
| Inrush Current: | 65 Amps max. at 230VAC/50Hz,full load | ||||
| AC Current: | 0.68A/230VAC | ||||
| Leakage Current: | ＜0.25mA/240VAC | ||||
| Efficiency: | 78% | 78% | 78% | 78% | |
| OUTPUT | DC Voltage: | 12V | 24V | 36V | 48V |
| Rated Current: | 1A | 500mA | 330mA | 250mA | |
| Rated Power: | 12W | 12W | 12W | 12W | |
| Voltage Tolerance: | ±5.0% | ±5.0% | ±5.0% | ±5.0% | |
| Ripple and Noise: | 120mVp-p | 240mVp-p | 360mVp-p | 480mVp-p | |
| Line Regulation: | ±3% | ||||
| Load Regulation: | ±5% | ||||
| Setup, Rise, Hold Up time: | 1s, 10ms/60ms 230VAC 1000ms, 1ms/25ms 115VAC at full load | ||||
| ENVIRONMENTAL | Operating Temperature: | -20 ~ +50 (Refer to "Derating Curve") | |||
| Storage Temp: | -40℃ ~ 85℃ | ||||
| Storage Humidity: | 20 ~ 95% RH | ||||
| Working Humidity: | 20 ~ 95% RH non-condensing | ||||
| PROTECTION | Over Load: | Above 105%-130% rated output power | |||
| Protection type: Hiccup mode, recovers automatically after fault condition is removed | |||||
| Over Voltage: | 12V:13.8 ~ 16.2V 24V:27.6 ~ 32.4V 36V:41.4~48.6V 48V:55.2~64.8V | ||||
| Protection type: Shut down o/p voltage, re-power on to recover | |||||
| Over Temperature: | Shut down o/p voltage, re-power on to recover | ||||
| SAFETY & EMC | Safety Regulations: | EN61347-2-13:2014+A1:2017,EN61347-1:2015;EN62493:2015 | |||
| Withstand Voltage: | I/P-O/P:3750KVAC | ||||
| Harmonic | EN61000-3-2 Class C EN61000-3-3 | ||||
| EMI: | Compliance to EN55015 | ||||
| EMS: | compliance to 61547:2009 | ||||
| OTHER | MTBF: | 200,000 Hours Minimum at Full Load at 25℃ Ambient | |||
| Size: | 128*46*12.5mm | ||||
| Weight: | 50g / pcs | ||||
| Packaging: | 100PCS/CTN,36*28.5*25cm | ||||
