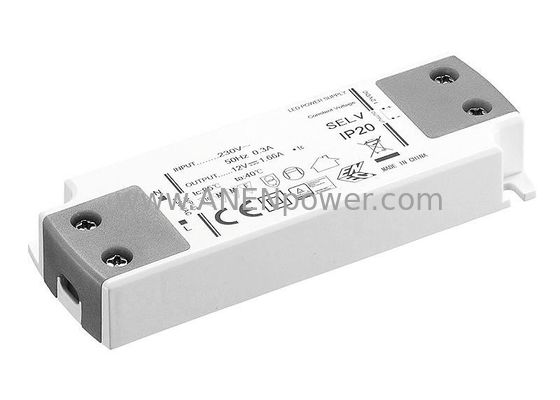

20W UKCA Certified Super Thin 12V 1.66A 24V Dual Voltage LED Power Supply Driver for LED Lighting
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Power: | 20W Max. | Input: | 90-265V AC |
|---|---|---|---|
| Output Voltage: | 12V/ 24V/ 36V /48V | Output Current: | 1.66A/ 830mA/ 550mA/ 416mA |
| Dimension(LxWxH): | 128x46x17mm | Voltage Tolerance: | ±5% |
| Riple(P-P): | ＜1% | Efficiency: | ≥89% |
20W UKCA Certified Super Thin 12V 1.66A 24V Dual Voltage LED Power Supply Driver for LED Lighting
Introducing our 20W UKCA Certified Super Thin LED Power Supply, the perfect compact solution for modern LED lighting installations across residential and commercial spaces. This ultra-slim switching driver delivers reliable dual voltage output (12V at 1.66A and 24V capability) in an exceptionally space-saving design that fits seamlessly into tight cabinets, signage enclosures, and architectural features. Engineered for flicker-free performance, this power supply ensures consistent illumination for LED strips, panels, and low-voltage lighting systems while maintaining superior thermal efficiency and whisper-quiet operation for permanent installations.
Built to meet stringent UK safety standards with full UKCA certification, this power supply incorporates comprehensive protection against over-voltage, over-current, short circuits, and thermal overload conditions. The high-efficiency switching design minimizes energy waste and heat generation, while universal 100-240V AC input compatibility ensures reliable performance across diverse electrical environments. Premium components and robust construction guarantee extended service life, and convenient screw terminal connections enable quick, tool-free installation for both professional electricians and DIY enthusiasts seeking certified, reliable power solutions.
Ideal for diverse lighting applications including under-cabinet kitchen lighting, retail display cases, accent lighting, and signage projects, this versatile driver eliminates the need for multiple power supplies by supporting different LED configurations from a single compact unit. Its low-profile design allows for discreet mounting in space-constrained areas without compromising safety or performance, while UKCA certification provides peace of mind for UK market compliance. Experience the perfect balance of certified safety, space-saving innovation, and dual-voltage flexibility with this professional-grade 20W LED power supply designed for quality-conscious installers and homeowners demanding reliable, compact lighting solutions.
- Universal Input: 90-265V AC 50/60Hz
- RoHS Compliance
- EMI Standard EN55015
- Safety Standard: EN61347-1, EN61347-2-13, UL8750
- Inrush current<65A AC230V/50Hz - High efficiency & low power consumption
- Short Circuit, Over Current and Over Voltage Protection
- Over temperature protection
- 100% full load burn-in test
- Auto restart after remove of fault conditions
- IP20 protection rating
| MODEL DETAIL SPEC. | APL20S-1201660 | APL20S-2400830 | APL20S-3600550 | APL20S-4800416 | |
| INPUT | Input Voltage: | 100-240VAC/ 200-240VAC | |||
| Input Frequency: | 50-60Hz | ||||
| Inrush Current: | 65 Amps max. at 230VAC/50Hz,full load | ||||
| AC Current: | 0.11A/230VAC | ||||
| Leakage Current: | ＜0.25mA/240VAC | ||||
| Efficiency: | 88% | 88% | 88% | 88% | |
| OUTPUT | DC Voltage: | 12V | 24V | 36V | 48V |
| Rated Current: | 1.66A | 830mA | 550mA | 416mA | |
| Rated Power: | 20W | 20W | 20W | 20W | |
| Voltage Tolerance: | ±5.0% | ±5.0% | ±5.0% | ±5.0% | |
| Ripple and Noise: | 120mVp-p | 240mVp-p | 360mVp-p | 480mVp-p | |
| Line Regulation: | ±3% | ||||
| Load Regulation: | ±5% | ||||
| Setup, Rise, Hold Up time: | 1s, 10ms/60ms 230VAC 1000ms, 1ms/25ms 115VAC at full load | ||||
| ENVIRONMENTAL | Operating Temperature: | -20 ~ +50 (Refer to "Derating Curve") | |||
| Storage Temp: | -40℃ ~ 85℃ | ||||
| Storage Humidity: | 20 ~ 95% RH | ||||
| Working Humidity: | 20 ~ 95% RH non-condensing | ||||
| PROTECTION | Over Load: | Above 105%-130% rated output power | |||
| Protection type: Hiccup mode, recovers automatically after fault condition is removed | |||||
| Over Voltage: | 12V:13.8 ~ 16.2V 24V:27.6 ~ 32.4V 36V:41.4~48.6V 48V:55.2~64.8V | ||||
| Protection type: Shut down o/p voltage, re-power on to recover | |||||
| Over Temperature: | Shut down o/p voltage, re-power on to recover | ||||
| SAFETY & EMC | Safety Regulations: | EN61347-2-13:2014+A1:2017,EN61347-1:2015;EN62493:2015 | |||
| Withstand Voltage: | I/P-O/P:3750KVAC | ||||
| Harmonic | EN61000-3-2 Class C EN61000-3-3 | ||||
| EMI: | Compliance to EN55015 | ||||
| EMS: | compliance to 61547:2009 | ||||
| OTHER | MTBF: | 200,000 Hours Minimum at Full Load at 25℃ Ambient | |||
| Size: | 128*46*17mm | ||||
| Weight: | 70g / pcs | ||||
| Packaging: | 100PCS/CTN,37.5*28.5*24cm | ||||
