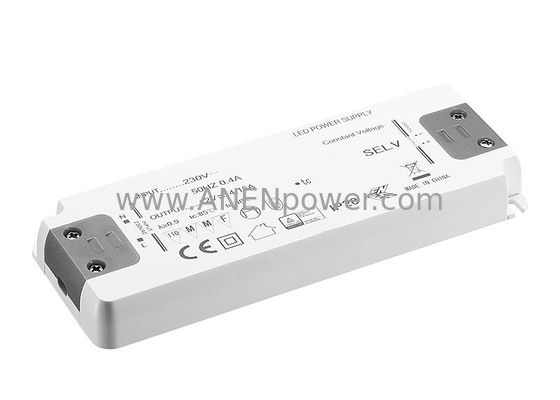

50W Super Thin Dual Voltage LED Driver 12V 4.16A 24V 2.08A Switching Power Supply
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Power: | 50W Max. | Input: | 90-265V AC |
|---|---|---|---|
| Output Voltage: | 12V/ 24V/ 36V /48V | Output Current: | 4.16A/ 2080mA/ 1380mA/ 1050mA |
| Dimension(LxWxH): | 184x63x22mm | Voltage Tolerance: | ±5% |
| Riple(P-P): | ＜1% | Efficiency: | ≥90% |
50W Super Thin Dual Voltage LED Driver 12V 4.16A 24V 2.08A Switching Power Supply
Introducing our 50W Super Thin Dual Voltage LED Driver, the ultimate space-saving power solution for modern LED lighting installations. This ultra-slim switching power supply delivers exceptional performance with dual output options—12V at 4.16A or 24V at 2.08A—providing versatile compatibility for LED strips, panels, and low-voltage lighting systems. Its remarkably compact profile enables installation in tight spaces where traditional bulky drivers cannot fit, while maintaining superior thermal efficiency and consistent power delivery for flicker-free illumination in residential and commercial applications.
Engineered with premium components and comprehensive protection circuits, this power supply features built-in safeguards against over-voltage, over-current, short circuits, and thermal overload conditions. The high-efficiency switching design minimizes energy consumption and heat generation, while the universal 100-240V AC input ensures global compatibility. Durable construction with quality materials guarantees reliable operation under continuous use, and convenient screw terminals enable quick, secure installation without specialized tools—making it ideal for both professional electricians and DIY enthusiasts.
Perfect for diverse lighting projects including kitchen under-cabinet lighting, retail displays, signage, and architectural accent lighting, this versatile driver eliminates the need for multiple power supplies by supporting different LED configurations from a single compact unit. Its slim form factor allows for discreet mounting in confined spaces without compromising performance or safety. Experience the perfect balance of power density, dual-voltage flexibility, and space-saving design with this professional-grade 50W LED power solution that delivers exceptional value and reliability for demanding lighting installations.
- Universal Input: 90-265V AC 50/60Hz
- RoHS Compliance
- EMI Standard EN55015
- Safety Standard: EN61347-1, EN61347-2-13, UL8750
- Inrush current<65A AC230V/50Hz - High efficiency & low power consumption
- Short Circuit, Over Current and Over Voltage Protection
- Over temperature protection
- 100% full load burn-in test
- Auto restart after remove of fault conditions
- IP20 protection rating
| MODEL DETAIL SPEC. |
APL50S -1204160 |
APL50S -2402080 |
APL50S -3601380 |
APL50S -4801050 |
|
| INPUT | Input Voltage: | 100-240VAC/ 200-240VAC | |||
| Input Frequency: | 50-60Hz | ||||
| Inrush Current: | 65 Amps max. at 230VAC/50Hz,full load | ||||
| AC Current: | 0.17A/230VAC | ||||
| Leakage Current: | ＜0.25mA/240VAC | ||||
| Efficiency: | 88% | 88% | 88% | 88% | |
| OUTPUT | DC Voltage: | 12V | 24V | 36V | 48V |
| Rated Current: | 4.16A | 2080mA | 1380mA | 1050mA | |
| Rated Power: | 50W | 50W | 50W | 50W | |
| Voltage Tolerance: | ±5.0% | ±5.0% | ±5.0% | ±5.0% | |
| Ripple and Noise: | 120mVp-p | 240mVp-p | 360mVp-p | 480mVp-p | |
| Line Regulation: | ±3% | ||||
| Load Regulation: | ±5% | ||||
| Setup, Rise, Hold Up time: | 1s, 10ms/60ms 230VAC 1000ms, 1ms/25ms 115VAC at full load | ||||
| ENVIRONMENTAL | Operating Temperature: | -20 ~ +50℃ (Refer to "Derating Curve") | |||
| Storage Temp: | -40℃ ~ 85℃ | ||||
| Storage Humidity: | 20 ~ 95% RH | ||||
| Working Humidity: | 20 ~ 95% RH non-condensing | ||||
| PROTECTION | Over Load: | Above 105%-130% rated output power | |||
| Protection type: Hiccup mode, recovers automatically after fault condition is removed | |||||
| Over Voltage: | 12V:13.8 ~ 16.2V 24V:27.6 ~ 32.4V 36V:41.4~48.6V 48V:55.2~64.8V | ||||
| Protection type: Shut down o/p voltage, re-power on to recover | |||||
| Over Temperature: | Shut down o/p voltage, re-power on to recover | ||||
| SAFETY & EMC | Safety Regulations: | EN61347-2-13:2014+A1:2017,EN61347-1:2015;EN62493:2015 | |||
| Withstand Voltage: | I/P-O/P:3750KVAC | ||||
| Harmonic | EN61000-3-2 Class C EN61000-3-3 | ||||
| EMI: | Compliance to EN55015 | ||||
| EMS: | compliance to 61547:2009 | ||||
| OTHER | MTBF: | 200,000 Hours Minimum at Full Load at 25℃ Ambient | |||
| Size: | 184x63x22mm | ||||
| Weight: | 200g / pcs | ||||
| Packaging: | 100PCS/CTN,37.5*28.5*24cm | ||||
