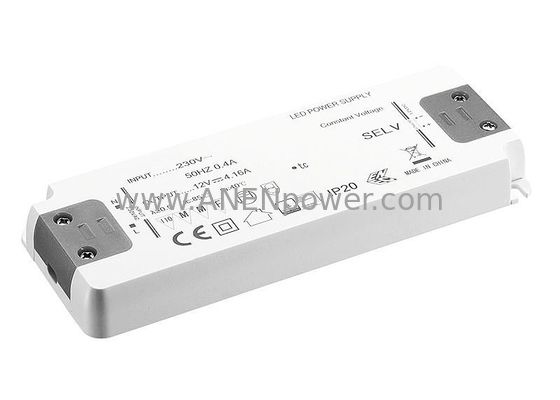

100W Super Thin LED Power Supply Driver 12V 8.3A 24V 4.16A 36V 2.7A Constant Voltage
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Power: | 100W Max. | Input: | 90-265V AC |
|---|---|---|---|
| Output Voltage: | 12V/ 24V/ 36V /48V | Output Current: | 8300mA/ 4160mA/ 2700mA/ 2080mA |
| Dimension(LxWxH): | 160x58x18mm | Voltage Tolerance: | ±5% |
| Riple(P-P): | ＜1% | Efficiency: | ≥90% |
100W Super Thin LED Power Supply Driver 12V 8.3A 24V 4.16A 36V 2.7A Constant Voltage
The 100W Super Thin Constant Voltage LED Power Supply delivers exceptional performance in an ultra-compact design, featuring triple output options (12V/8.3A, 24V/4.16A, 36V/2.7A) to power diverse LED lighting projects. Its slim profile enables installation in tight spaces where traditional bulky drivers cannot fit, while maintaining superior thermal management and energy efficiency. Ideal for professional installers and DIY enthusiasts seeking versatile, space-saving power solutions for modern LED applications.
Engineered with premium components and comprehensive protection circuits, this multi-voltage driver ensures reliable operation with built-in safeguards against over-voltage, over-current, short circuits, and thermal overload. The universal 100-240V AC input compatibility supports global installations, while the high-efficiency design minimizes energy waste and reduces operating costs. The robust IP20-rated plastic housing provides durable indoor protection, and convenient screw terminals enable quick, secure wiring without specialized tools.
Perfect for demanding commercial and residential lighting setups, this versatile power supply effortlessly drives LED strips, panels, signage, and architectural lighting systems across multiple voltage requirements. From retail displays and kitchen under-cabinet lighting to entertainment centers and custom accent installations, its compact form factor and powerful performance eliminate the need for multiple drivers. Experience professional-grade reliability, exceptional space efficiency, and future-proof flexibility with this ultimate 100W multi-voltage LED power solution.
- Universal Input: 90-265V AC 50/60Hz
- RoHS Compliance
- EMI Standard EN55015
- Safety Standard: EN61347-1, EN61347-2-13, UL8750
- Inrush current<65A AC230V/50Hz - High efficiency & low power consumption
- Short Circuit, Over Current and Over Voltage Protection
- Over temperature protection
- 100% full load burn-in test
- Auto restart after remove of fault conditions
- IP20 protection rating
| MODEL DETAIL SPEC. |
APL100S -1208300 |
APL100S-2404160 | APL100S-3602700 | APL100S-4802080 | |
| INPUT | Input Voltage: | 100-240VAC/ 200-240VAC | |||
| Input Frequency: | 50-60Hz | ||||
| Inrush Current: | 65 Amps max. at 230VAC/50Hz,full load | ||||
| AC Current: | 0.56A/230VAC | ||||
| Leakage Current: | ＜0.35mA/240VAC | ||||
| Efficiency: | 89% | 89% | 89% | 89% | |
| OUTPUT | DC Voltage: | 12V | 24V | 36V | 48V |
| Rated Current: | 8300mA | 4160mA | 2700mA | 2080mA | |
| Rated Power: | 100W | 100W | 100W | 100W | |
| Voltage Tolerance: | ±5.0% | ±5.0% | ±5.0% | ±5.0% | |
| Ripple and Noise: | 120mVp-p | 240mVp-p | 360mVp-p | 480mVp-p | |
| Line Regulation: | ±3% | ||||
| Load Regulation: | ±5% | ||||
| Setup, Rise, Hold Up time: | 1s, 10ms/60ms 230VAC 1000ms, 1ms/25ms 115VAC at full load | ||||
| ENVIRONMENTAL | Operating Temperature: | -20 ~ +50 (Refer to "Derating Curve") | |||
| Storage Temp: | -40℃ ~ 85℃ | ||||
| Storage Humidity: | 20 ~ 95% RH | ||||
| Working Humidity: | 20 ~ 95% RH non-condensing | ||||
| PROTECTION | Over Load: | Above 105%-130% rated output power | |||
| Protection type: Hiccup mode, recovers automatically after fault condition is removed | |||||
| Over Voltage: | 12V:13.8 ~ 16.2V 24V:27.6 ~ 32.4V 36V:41.4~48.6V 48V:55.2~64.8V | ||||
| Protection type: Shut down o/p voltage, re-power on to recover | |||||
| Over Temperature: | Shut down o/p voltage, re-power on to recover | ||||
| SAFETY & EMC | Safety Regulations: | EN61347-2-13:2014+A1:2017,EN61347-1:2015;EN62493:2015 | |||
| Withstand Voltage: | I/P-O/P:3750KVAC | ||||
| Harmonic | EN61000-3-2 Class C EN61000-3-3 | ||||
| EMI: | Compliance to EN55015 | ||||
| EMS: | compliance to 61547:2009 | ||||
| OTHER | MTBF: | 200,000 Hours Minimum at Full Load at 25℃ Ambient | |||
| Size: | 160*58*18mm | ||||
| Weight: | 320g / pcs | ||||
| Packaging: | 100PCS/CTN,37.5*28.5*24cm | ||||
